micro force type
Capable of detecting and measuring a minute force at a μN (mgf) level with high sensitivity. Being lightweight and compact, this sensor is optimal for research and development and installation into equipment. Supports customization such as a change of the shape or the sensitivity.
- Capable of detecting and measuring a minute force at a μN (mgf) level with high sensitivity.
- Being lightweight and compact, this sensor is optimal for research and development and installation into equipment.
- Supports customization such as a change of the shape or the sensitivity.
Applications
Can be used for various uses that require measurement and/or identification of a minute external force (reactive force).
- Detecting the contact in probing
- Puncture force of the needle tip
- Detecting micro contact of a brittle device
- Viscoelasticity test
- Measuring the tensile, compressive and bending forces for a test specimen
- Measuring friction force

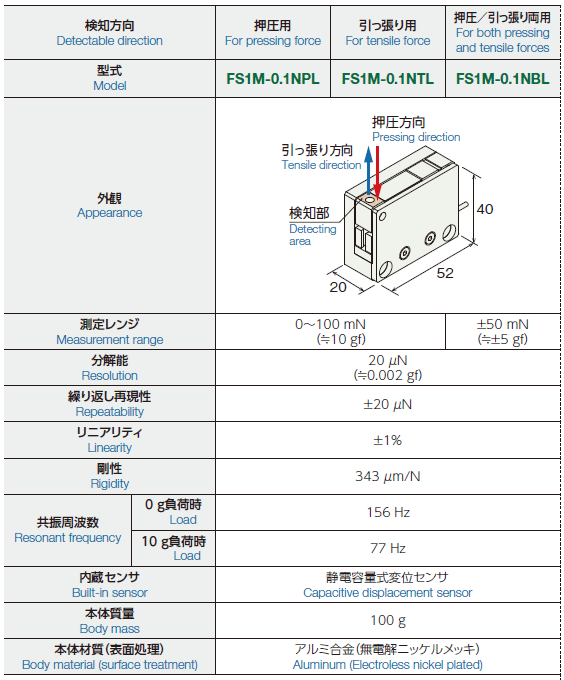

Ultra-high sensitivity
| Type | For pressing force | For tensile force | For both pressing and tensile forces |
|---|---|---|---|
| Model Number | FS1M-0.1NPL | FS1M-0.1NTL | FS1M-0.1NBL |
| Appearance |
 |
||
| Measurement range | 0 ～ 100mN （≒10gf） | ±50mN （≒±5gf) | |
| Resolution（Sensitivity） | 20μN （≒0.002gf） | ||
| Body mass | 100g | ||
| Size | 40×52×20 | ||

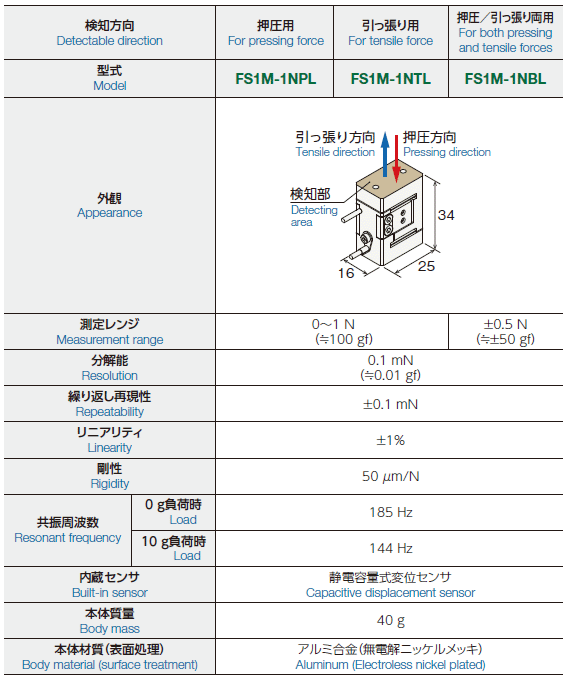

High sensitivity
| Type | For pressing force | For tensile force | For both pressing and tensile forces |
|---|---|---|---|
| Model Number | FS1M-1NPL | FS1M-1NTL | FS1M-1NBL |
| Appearance |
 |
||
| Measurement range | 0 ～ 1N（≒100gf） | ±0.5N（≒±50gf） | |
| Resolution（Sensitivity） | 0.1mN（≒0.01gf） | ||
| Body mass | 40g | ||
| Size | 34×25×16 | ||
Middle sensitivity
| Type | For pressing force | For tensile force | For both pressing and tensile forces |
|---|---|---|---|
| Model Number | FS1M-5NPL | FS1M-5NTL | FS1M-5NBL |
| Appearance |
 |
||
| Measurement range | 0 ～ 5N（≒500gf） | ±2.5N（≒±250gf） | |
| Resolution（Sensitivity） | 0.5mN（≒0.05gf） | ||
| Body mass | 40g | ||
| Size | 34×25×16 | ||

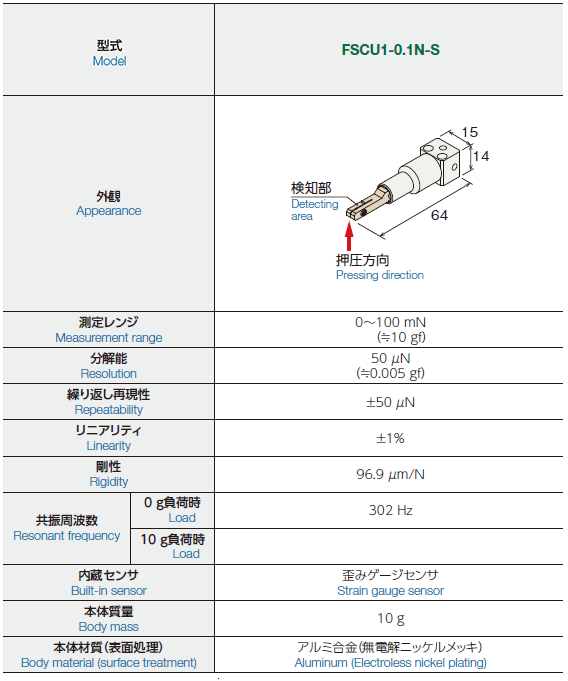

Arm-type Ultra-high sensitivity
| Model Number | FSCU1-0.1N-S |
|---|---|
| Appearance |
 |
| Measurement range | 0～100mN（≒10 gf） |
| Resolution（Sensitivity） | 50μN（≒0.05gf） |
| Body mass | 10g |
| Size | 15×14×64 |
Ultra-high sensitivity
High sensitivity
Middle sensitivity
Ultra-high sensitivity

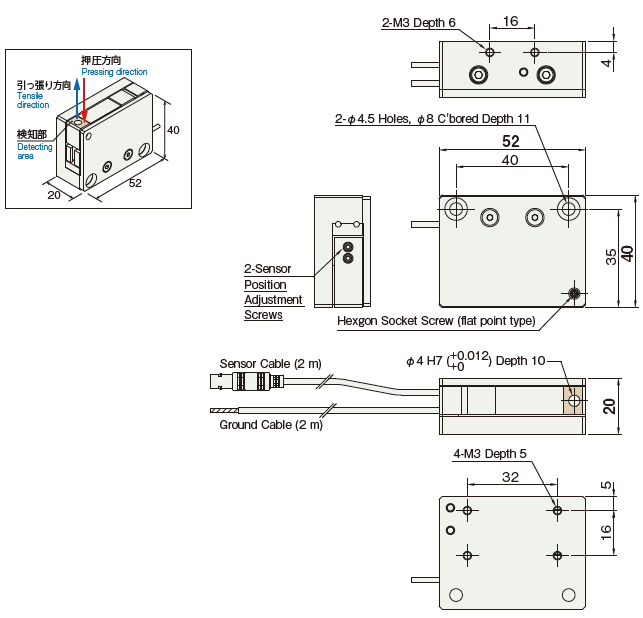

Ultra-high sensitivity
FS1M-0.1N（P）,（T）,（B）L

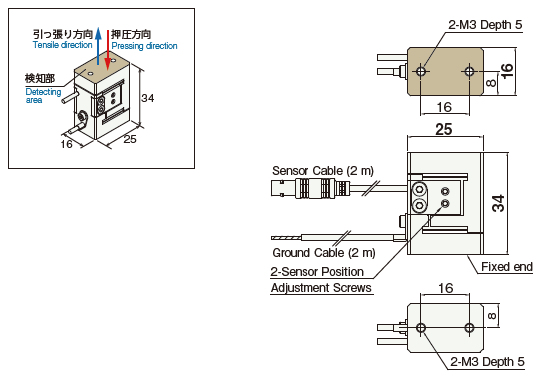

High sensitivity / Middle sensitivity
FS1M-1N（P）,（T）,（B）L/ FS1M-5N（P）,（T）,（B）L

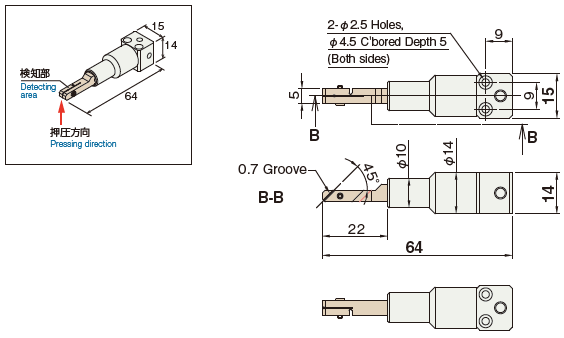

Ultra-high sensitivity
FSCU1-0.1N-S
