Multi-axes Analog circuit controller
These are controllers intended to drive and control piezo stages. The controller, in which a control circuit, a driver and a displacement sensor amplifier are integrated, is directly connected with a piezo stage to provide closed-loop control. High-accuracy positioning with no hysteresis or creeping is achieved.
Having all functions required for precision positioning
A “feedback control substrate,” a “low-noise driver substrate” and an “ultra-high resolution sensor amplifier substrate” are compactly modulated together and installed in the controller.
Multiple methods for a position command from a higher-level device are selectable
Since an analog voltage IF (0 to +10 V), a serial IF (RS232C), parallel IF (16-bit) and a USB/LAN are prepared, the customer can select an interface that is easy to use according to the purpose or use.※
※Options vary with models.

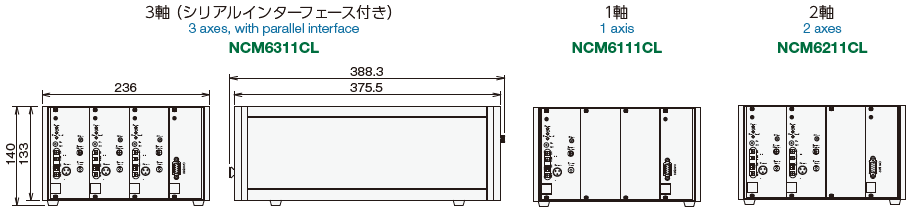

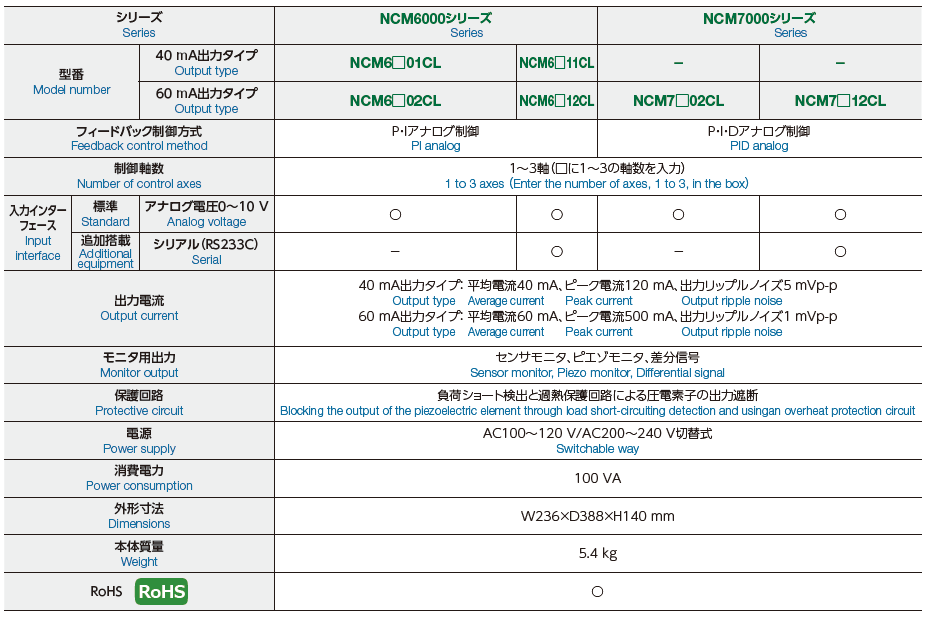

| Series | NCM6000Series | NCM7000Series | ||||
|---|---|---|---|---|---|---|
| Model Number | 40 mAOutput type | NCM6□01C | NCM6□11C | - | - | |
| 60 mAOutput type | NCM6□02C | CM6□12C | NCM7□02C | NCM7□12C | ||
| Feedback control method | PI analog | PID analog | ||||
| Number of control axes | 1 to 3 axes（ Enter the number of axes, 1 to 3, in the box） | |||||
| Input interface | Standard | Analog voltage0～10 V | ○ | ○ | ○ | ○ |
| Additional equipment | Serial（RS233C） | - | ○ | - | ○ | |
| Output current | 40 mAOutput type： Average current40 mA、Peak current120 mA、Output ripple noise5 mVp-p 60 mAOutput type： Average current60 mA、Peak current500 mA、Output ripple noise1 mVp-p |
|||||
| Power supply | AC100～120 V/AC200～240 VSwitchable way | |||||
