high-rigidity type
Capable of detecting and measuring a load of 100 N (10 kgf) or more with high resolution. Optimal for force measurement in precision machining or precision pressing. Supports customization such as a change of the shape or the sensitivity.
- Capable of detecting and measuring a load of 100N (10kgf) or more with high resolution.
- Optimal for force measurement in precision machining or precision pressing.
- Supports customization such as a change of the shape or the sensitivity.
Applications
Suitable for uses where the force is measured with high sensitivity while maintaining the rigidity.
- Measuring the cutting/grinding force in precision machining
- Detecting the contact between the cutting tool edge and the workpiece
- Pressing/hardness control
- Thrust/reaction force monitoring
- Strength test in the manufacturing process
- Measurement of friction force

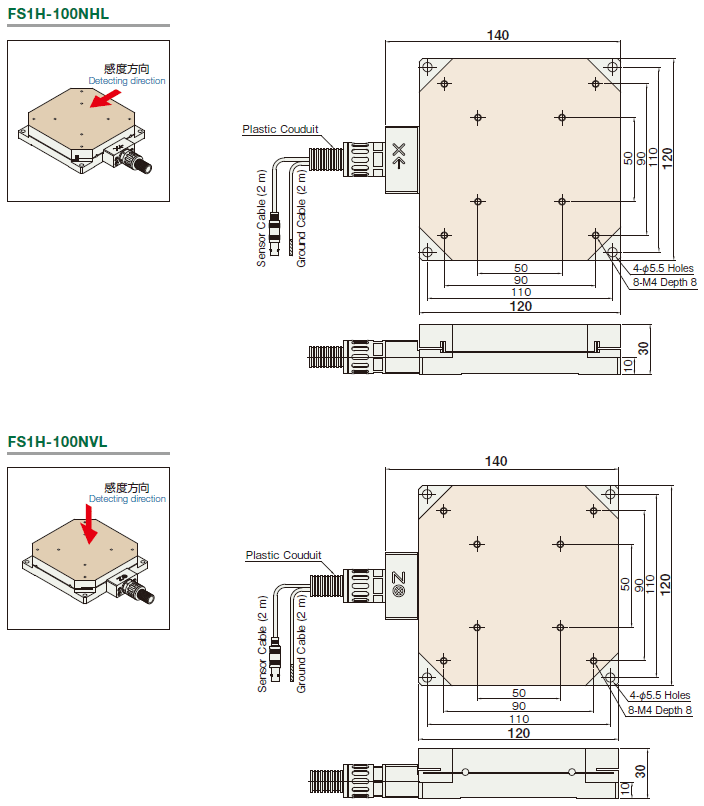

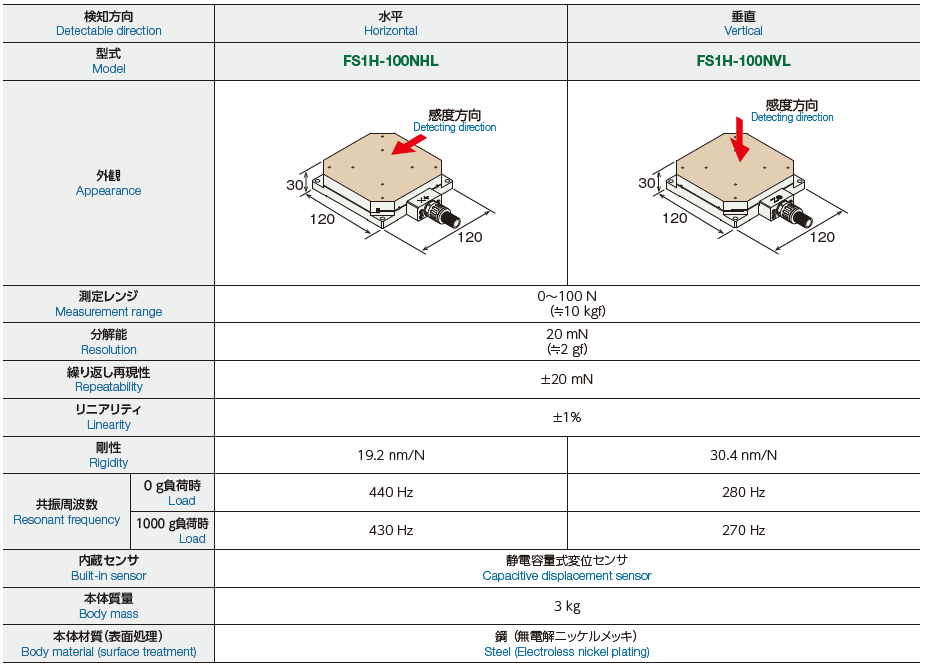

One axis
| Model Number | FS1H-100NHL | FS1H-100NVL |
|---|---|---|
| Appearance |
 |
 |
| Detectable direction | Horizontal | Vertical |
| Measurement range | 0 ～ 100N（≒10kgf） | |
| Resolution（Sensitivity） | 20mN（≒2gf） | |
| Body mass | 3kg | |
| Size | 120×120×30 | |

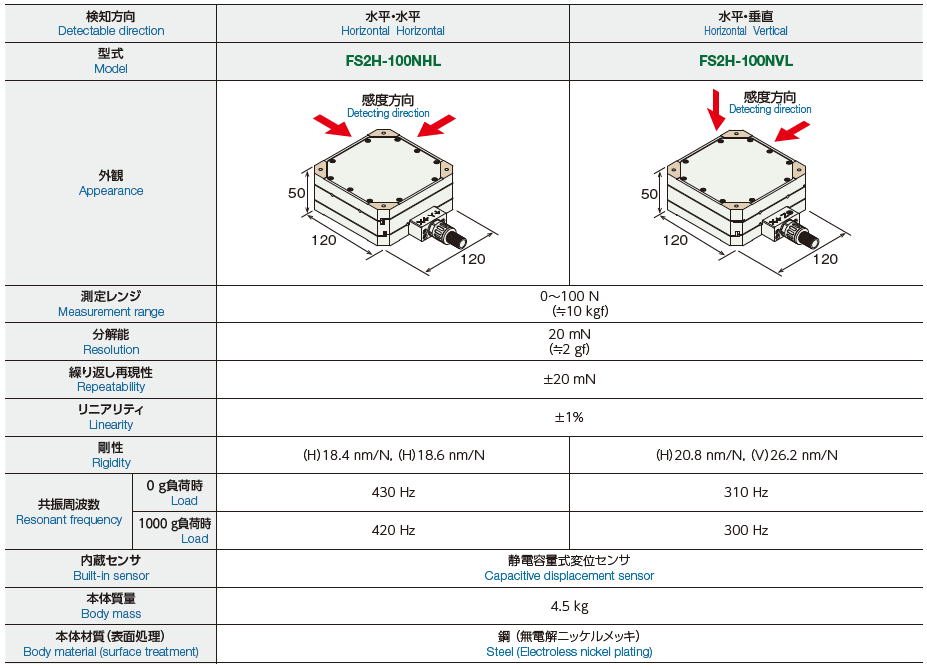

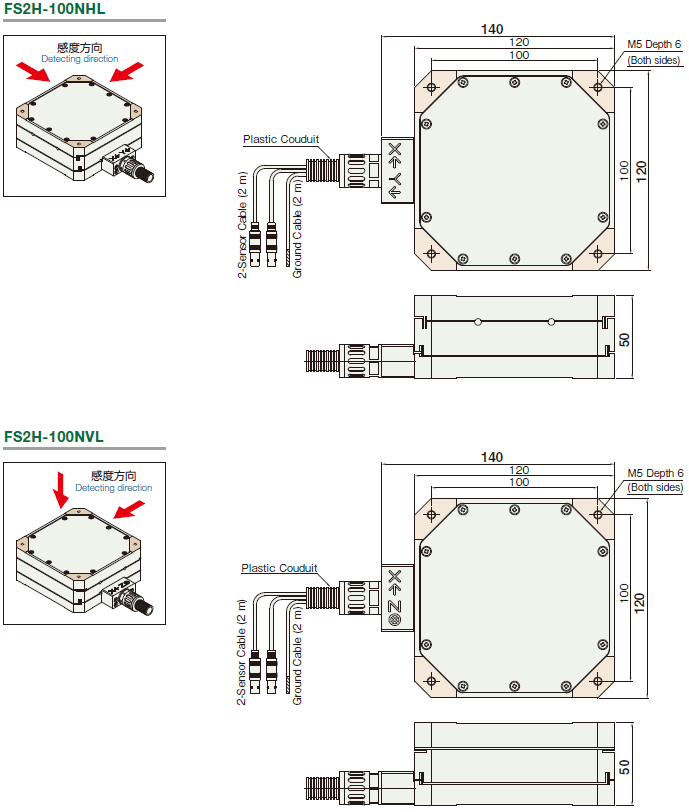

Two axes
| Model Number | FS2H-100NHL | FS2H-100NVL |
|---|---|---|
| Appearance |
 |
 |
| Detectable direction | Horizontal,Horizontal | Vertical,Horizontal |
| Measurement range | 0 ～ 100N（≒10kgf） | |
| Resolution（Sensitivity） | 20mN（≒2gf） | |
| Body mass | 4.5kg | |
| Size | 120×120×50 | |
