Single-axis Analog circuit controller
These are controllers intended to drive and control piezo stages. The controller, in which a control circuit, a driver and a displacement sensor amplifier are integrated, is directly connected with a piezo stage to provide closed-loop control. High-accuracy positioning with no hysteresis or creeping is achieved.
Having all functions required for precision positioning
A “feedback control substrate,” a “low-noise driver substrate” and an “ultra-high resolution sensor amplifier substrate” are compactly modulated together and installed in the controller.
Multiple methods for a position command from a higher-level device are selectable
Since an analog voltage IF (0 to +10 V), a serial IF (RS232C), parallel IF (16-bit) and a USB/LAN are prepared, the customer can select an interface that is easy to use according to the purpose or use.※
※Options vary with models.

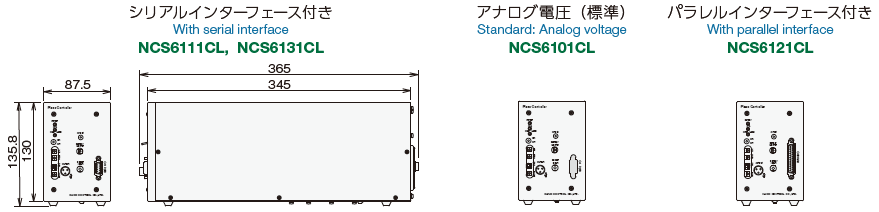

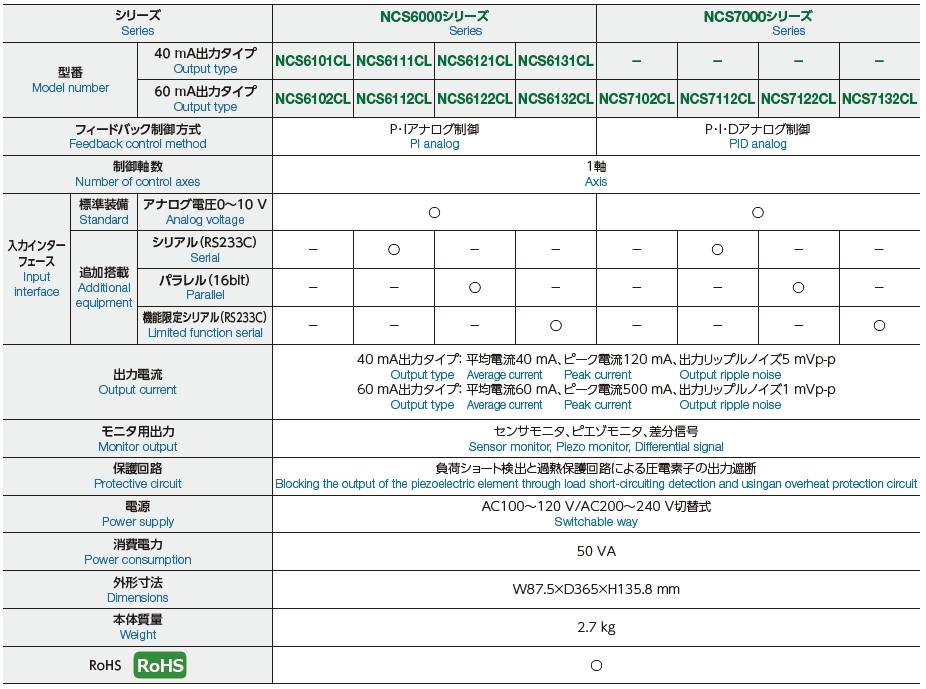

| Series | NCS6000Series | NCS7000Series | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | 40 mAOutput type | NCS6101CL | NCS6111CL | NCS6121CL | NCS6131CL | - | - | - | - | |
| 60 mAOutput type | NCS6102CL | NCS6112CL | NCS6122CL | NCS6132CL | NCS7102CL | NCS7112CL | NCS7122CL | NCS7132CL | ||
| Feedback control method | PI analog | PID analog | ||||||||
| Number of control axes | 1Axis | |||||||||
| Input interface | Standard | Analog voltage0～10 V | ○ | ○ | ||||||
| Additional equipment | Serial（RS233C） | - | ○ | - | - | - | ○ | - | - | |
| Parallel（16bit） | - | - | ○ | - | - | - | ○ | - | ||
| Limited function serial（RS233C） | - | - | - | ○ | - | - | - | ○ | ||
| Output current | 40 mAOutput type： Average current40 mA、Peak current120 mA、Output ripple noise5 mVp-p 60 mAOutput type： Average current60 mA、Peak current500 mA、Output ripple noise1 mVp-p |
|||||||||
| Power supply | AC100～120 V/AC200～240 VSwitchable way | |||||||||
