micro force type
Capable of detecting and measuring a minute force at a μN (mgf) level with high sensitivity. Being lightweight and compact, this sensor is optimal for research and development and installation into equipment. Supports customization such as a change of the shape or the sensitivity.
- A low-noise amplifier common to a “micro force sensor” and a “high-rigidity sensor”
- Designed to be directly connected with the respective sensor head, and output a voltage signal proportional to the pressure.
- Up to two axes can be connected to the amplifier.

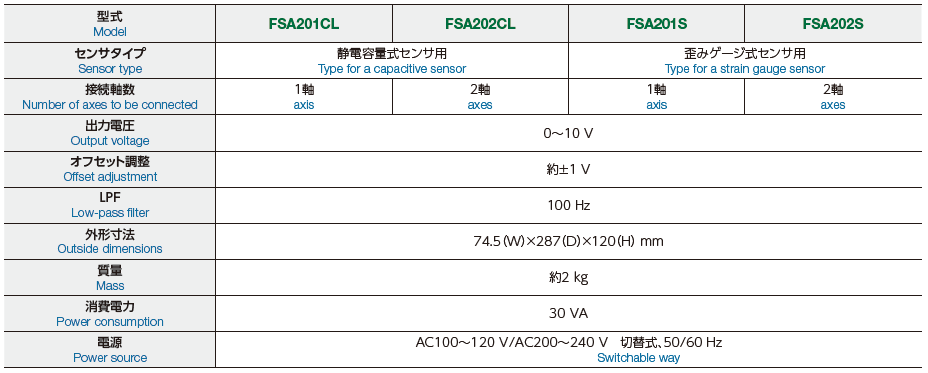

| Model Number | FSA201C | FSA202C | FSA201S | FSA202S |
|---|---|---|---|---|
| Appearance |
 |
|||
| Sensor type | Type for a capacitive sensor | Type for a strain gauge sensor | ||
| Number of axes to be connected | One axis | Two axes | One axis | Two axes |
| Output voltage | 0 ～ 10V | |||
| Outside dimensions | 74.5(W)×287(D)×120(H) mm | |||
| Power source | AC100～120V / AC200～240V Switchable way、 50/60Hz | |||
●Two types, one for a single-axis sensor and one for a double-axis sensor, are available. The case size is the same for both types.
●The type for a single-axis sensor allows another single-axis sensor to be added later.
